OTERIA Flare Predictor Tool 3.0

Click on any of the colored symbols on the map to retrieve flare detection/prediction information. More information below.

3076 3068

3078
Beta-Gamma-Delta

3078

• Area = 21
• Z = Dac
• N = 14
• L = 6

3081
Beta

3081

• Area = 12
• Z = Cao
• N = 9
• L = 7

3082
Beta

3082

• Area = 5
• Z = Dao
• N = 4
• L = 7

3083
Beta

3083

• Area = 1
• Z = Bxo
• N = 3
• L = 8

3084
Beta

3084

• Area = 2
• Z = Bxo
• N = 3
• L = 3

6

6

• Area = 4
• Zurich = C
• Penumbra = rudimentary (r)
• Leading = 1
• NN = 3

8

8

• Area = 4
• Zurich = C
• Penumbra = rudimentary (r)
• Leading = 1
• NN = 8

10

10

• Area = 41
• Zurich = D
• Penumbra = large asymmetric (k) north to south diameter > 2.5
• Leading = 4
• NN = 16

11

11

• Area = 11
• Zurich = D
• Penumbra = small asymmetric (a) north to south diameter < 2.5
• Leading = 5
• NN = 16

12

12

• Area = 3
• Zurich = C
• Penumbra = rudimentary (r)
• Leading = 1
• NN = 4

13

13

• Area = 25
• Zurich = D
• Penumbra = small symmetric (s) north to south diameter < 2.5
• Leading = 4
• NN = 23

14

14

• Area = 2
• Zurich = C
• Penumbra = rudimentary (r)
• Leading = 1
• NN = 3

6

6

• Area = 4
• Zurich = C
• Penumbra = rudimentary (r)
• Leading = 1
• NN = 3

8

8

• Area = 4
• Zurich = C
• Penumbra = rudimentary (r)
• Leading = 1
• NN = 8

10

10

• Area = 41
• Zurich = D
• Penumbra = large asymmetric (k) north to south diameter > 2.5
• Leading = 4
• NN = 16

11

11

• Area = 11
• Zurich = D
• Penumbra = small asymmetric (a) north to south diameter < 2.5
• Leading = 5
• NN = 16

12

12

• Area = 3
• Zurich = C
• Penumbra = rudimentary (r)
• Leading = 1
• NN = 4

13

13

• Area = 25
• Zurich = D
• Penumbra = small symmetric (s) north to south diameter < 2.5
• Leading = 4
• NN = 23

14

14

• Area = 2
• Zurich = C
• Penumbra = rudimentary (r)
• Leading = 1
• NN = 3

Catania sunspot groups
2022-08-16 07:18:00

NOAA AR/sunspot

NOAA Halpha plage

NOAA expected region

2022-08-19 00:30:00

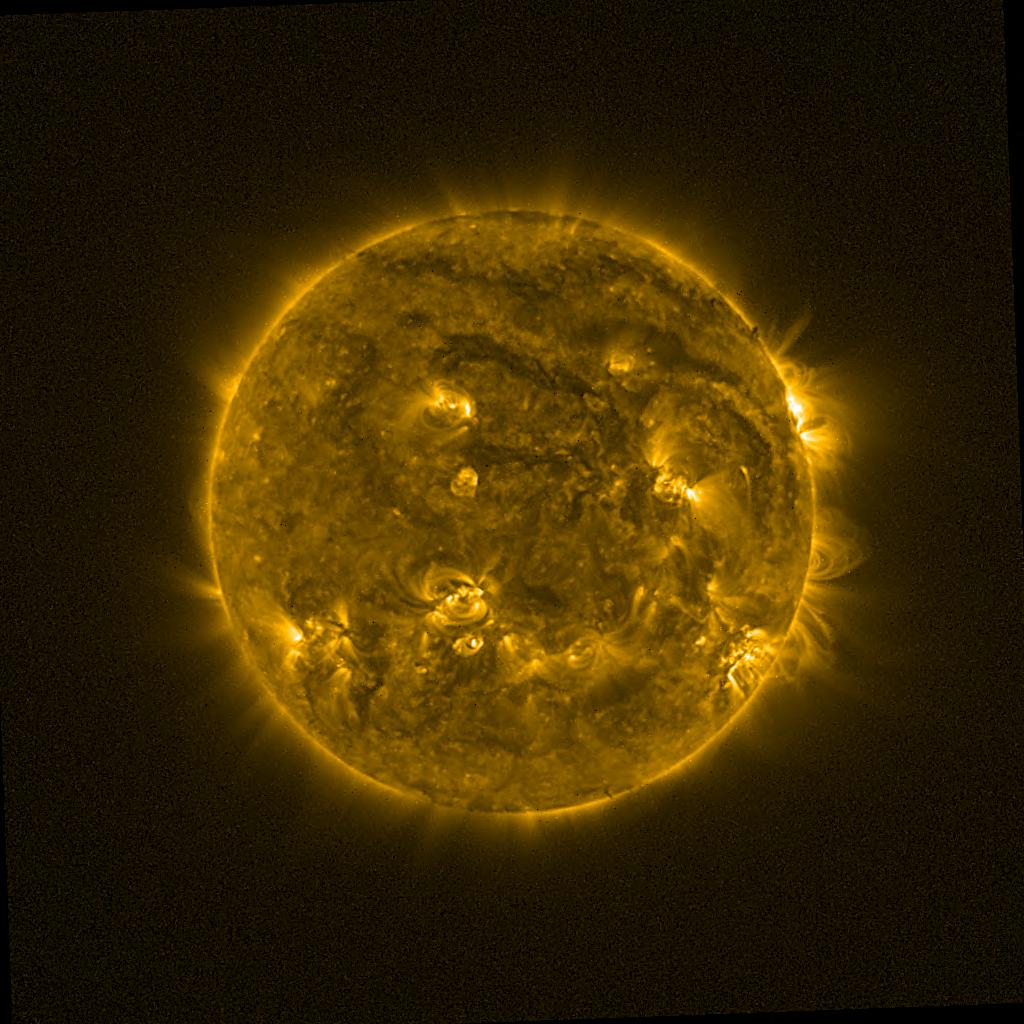

PROBA2/SWAP 17.4nm
2022-08-19T19:09:05.495

How to use?

Click on any of the colored symbols on the map to retrieve flare detection/prediction information.

• Blue numbers refer to Catania sunspot groups. Put your mouse over it to bring a pop-up window that displays the sunspot group characteristics (area in tens of millionth of the solar hemisphere, Z= sunspot group classification, N=number of spots). Clicking on the green number will bring you to dedicated page that shows you the history plot of this sunspot group and its flaring probabilities (in %) for C, M and X flares based on the McIntosh scheme. Past flares are showing as blue spikes of magnitude scaled in the respective C, M and X class.
• Cyan numbers refer to NOAA active regions. Put your mouse over it to bring a pop-up window that displays the characteristics of the NOAA active region (same as above plus L = longitudinal extend). Clicking on the red number will bring you to the Solar Monitor page for this active region.
• Yellow numbers refer to NOAA halpha plages. Clicking on them brings you to Big Bear Solar Observatory.
• Red numbers refer to NOAA returning regions on the East limb.
• Blue/green Arrows point from the location where the group/region was observed to the location where we expect the group/region to be at the time of observation of the underlying SWAP image.

What is new in Ver 3.0 (2012-12-06)

• Adaptation to the internal changes of the database
• Better quality of swap image
• Extra images AIA/HMI
• Go back in time

What is new in Ver 2.0 (2011-03-17)

• when clicking on the green numbers now brings you to dedicated page with full explanation of the graph.

What is new in Ver 1.1 (2010-12-14)

• the formatting of the observation date of Catania and NOAA is now ISO 8601 compliant
• SWAP images that are underexposed, off-pointed or LED-powered are not used.
• bug corrected for 1-digit months

Acknowledgments

	The SOTERIA project in general, and the present tool in particular (deliverable 5.1), thankfully acknowledge support from the EU Framework 7 Programme.
	Catania sunspot group information is received from Catania Astrophysical Observatory through the ISES network
	SWAP is a project of the Centre Spatial de Liege and the Royal Observatory of Belgium funded by the Belgian Federal Science Policy Office (BELSPO)
